620 Ltr
Side Discharge
Bin
Product Code: JBHCT/8
Length
1500mm
Width
1190mm
Height
1130mm

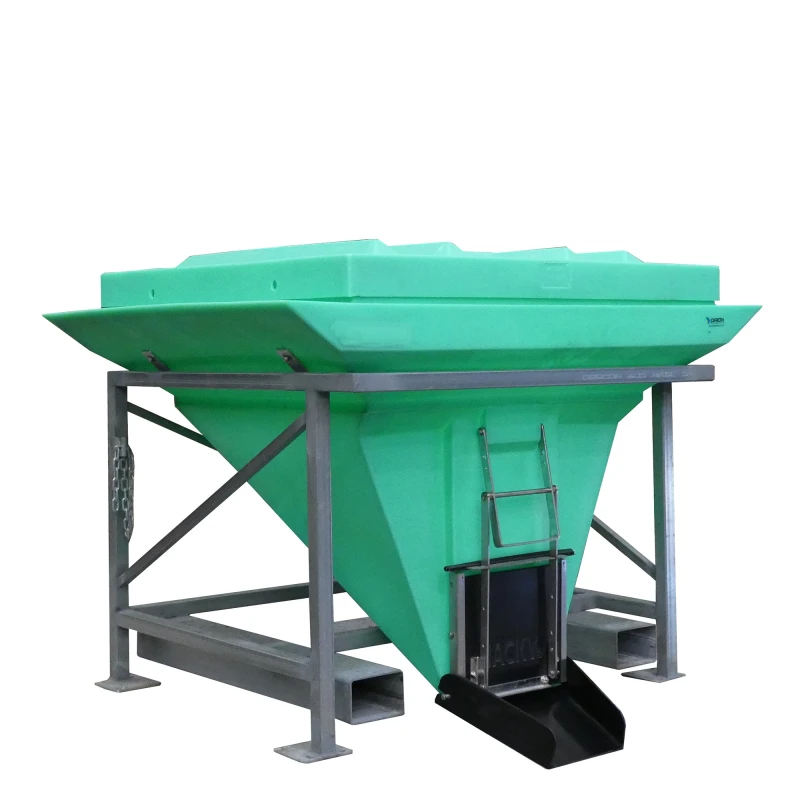

The Side Discharge JACKY® Bin design incorporates a poly hopper mounted on a forkliftable steel base.
The JBHCT/8 Side Discharge JACKY® Hopper Bin design incorporates a poly hopper mounted in a fork-liftable steel stillage. The bin empties through a side opening at the base of the bin, with the slide-hatch mechanism allowing precise control of the discharge rate.
Model JBHCT/8 Benefits
- 1200kg/620 Ltr capacity.
- Safe Working Load (SWL) - 1200kg.
- Very low profile bin for height critical applications.
- Ideal for feed and seed storage.
- Large top opening for easy filling and cleaning.
- All working parts are UV stabilised polyethylene or stainless steel for longevity.
- 40° run slope allows the discharge rate of most granular products to be easily controlled.
- Standard colour is Faint Green.
- Serial numbering and custom branding available to assist in tracking batch lots.
The Side Discharge JACKY® Bin design incorporates a poly hopper mounted on a forkliftable steel base.
Length
1500mm
Width
1190mm
Height
1130mm
-
Fully removable lid
Large opening for easy filling and cleaning
-
Best Quality Materials
See the remaining product level through the wall of the bin. Translucent polymer. Fully UV Stabilised, food grade and BPA free.
-
Engineered And Load Rated
Most JACKY Bins have a recommended Safe Working Load (SWL) of 1200kg, allowing you to empty full bulk bags into the bin for easy dispensing.
-
Integral Safety Chain
Safety chain and catch on each back leg, to facilitate attachment to loader headboard and prevent slipping.
-
Heavy Duty Galvanised Steel Frame
Rigid, Australian made steel frame, built to withstand the everyday rigours of JACKY Bin life.
-
Stainless Steel/poly Discharge Hatch
Quality, rust free stainless steel components with 12mm HDPE slide gate hatch. Excellent longevity and trouble free service.
-
Large, Fully Enclosed Tyne Pockets
Heavy walled galvanized RHS (Rectangular Hollow Section), 830mm centre spacing. Prevents bin from bouncing off loader tynes.
